8. Triangular Hubbard Model#

This example covers building a Hubbard model Hamiltonian on a triangular lattice, and generating a free-electron trial wavefunction.

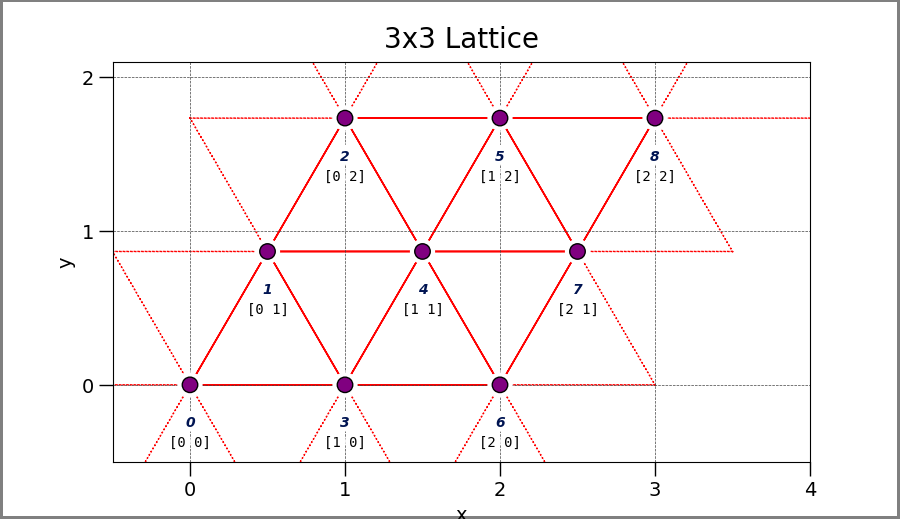

a 3x3x triangular lattice

A lattice model Hamiltonian can be generated using afqmctools and a toml-based input file. Below is a sample input file, which we name input.toml

[hamiltonian]
t = 1.0 # defaults to 1.0
U = 2.0

[lattice]
L1 = 3
L2 = 3
boundary1 = "PBC" # or "open" for open boundaries
boundary2 = "PBC" # or "open" for open boundaries
type = "triangular" # defaults to square

[misc_params]
nelec = [2,2]

if no “type” is specified in the “lattice” section, then a square lattice is used.

afqmctools can be invoked within a Python script as

from afqmctools.hamiltonian.model.director import HamiltonianDirector
import afqmctools.utils.io as io
from afqmctools.wavefunction.free_electron import free_electron
import afqmctools.utils.visualize as vis

infile = "input.toml"

# Build and save a lattice model Hamiltonian
hamiltonian_dir = HamiltonianDirector(source=infile)
lattice = hamiltonian_dir.builder.lattice
hamiltonian = hamiltonian_dir.build()

# makes a visualization of the lattice and saves it "lattice.png"
vis.plot_lattice(
    lattice=lattice,
    save=True
)

nelec = io.read_input_params(infile)["misc_params"]["nelec"]
io.write_model_hamiltion(
    hamiltonian=hamiltonian,
    fname="afqmc.h5",
    nelec=nelec
)

# compute and save a free-electron trial wfn
free_electron(
    source=infile,
    nelec=nelec,
    output="afqmc.h5"
)

The free_electron() function accepts a twist keyword argument for the sake of reproducibility for open-shell systems. twist should be a 2-d iterable containing \(\vec{\theta}=(\theta_1,\theta_2)\) in radians even if one component is set to 0.0. By default, a small incommensurate twist angle is used.

If the sample Python script is run above with the sample input file, the following should be present at the end of the output.

Running in Slater Detemrinant Mode
energyCall: Etotal=(-10.449536323547363+0j) with EK=(-12.000000953674316+0j) EU=(1.5504649877548218+0j) EU1=0 EU2=0 EJ=0
Reference HF Energy = -10.449536323547363

See the examples in Running SAFIRE for how to run AFQMC.
