1. Hello SAFIRE#
Goal: At the end of this tutorial, you will know how to run an AFQMC calculation using SAFIRE and extract the AFQMC energy from the output given all necessary inputs.
1.1. What you will learn#
what are the inputs and outputs of SAFIRE.
how to invoke the SAFIRE executable from the command line in serial, using MPI, and using GPU(s)
how to extract the AFQMC energy from the outputs of SAFIRE using afqmctools
how to use the tutorial helper functions to perform 2 and 3 from within an interactive Python notebook
The purpose of this tutorial is to run a first AFQMC calculation without going into low-level details.

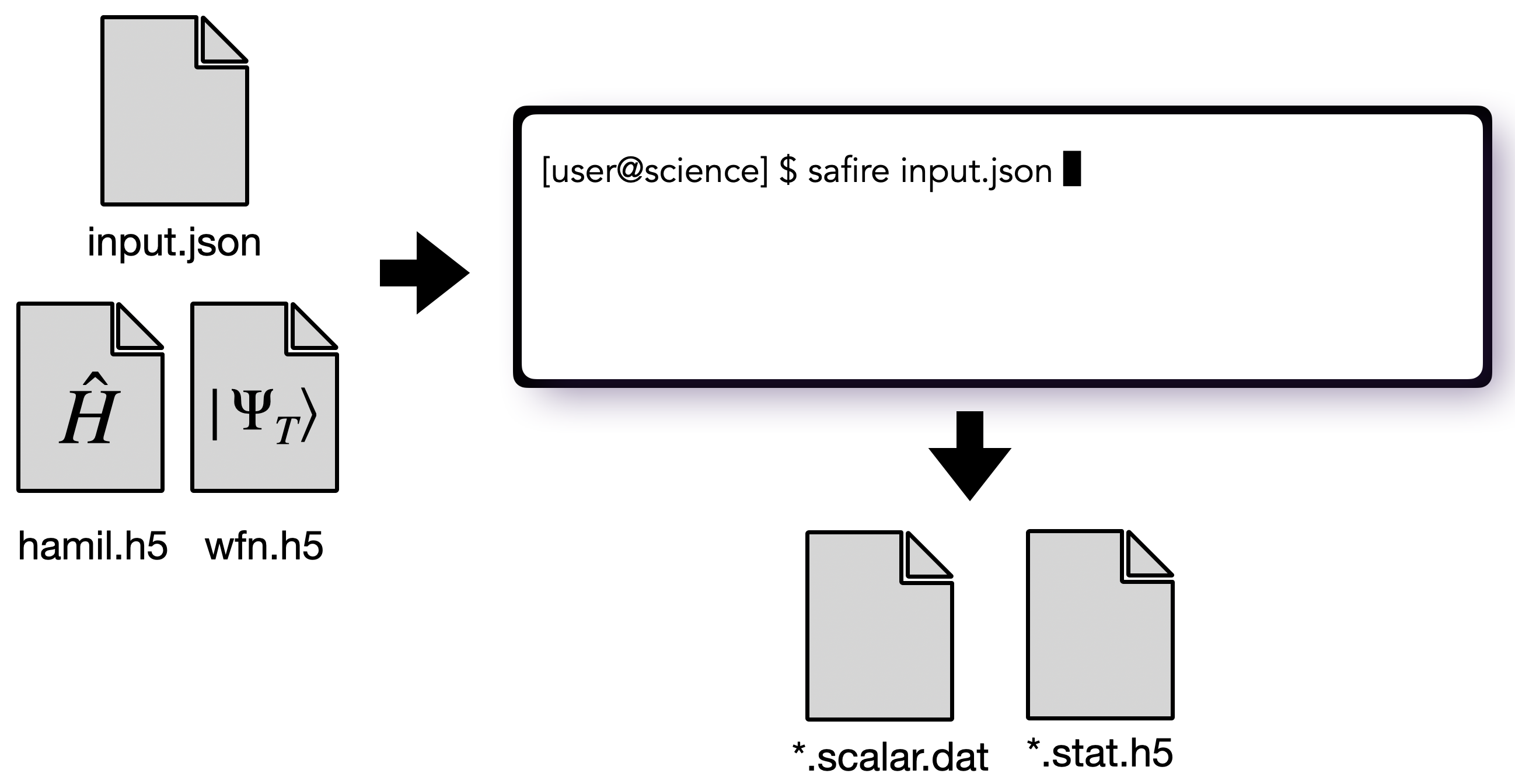

Below is a schematic of the inputs and outputs of SAFIRE.
We will learn more about the details of all of these files in future tutorials. For this tutorial, pregenerated input files are provided in the “files” directory relative to the directory of this tutorial.
The Inputs
To perform a calculation, SAFIRE requires a Hamiltonian and a trial wave function. Both are provided as inputs using the files “hamil.h5” and “wfn.h5”, respectively. The file “input.json” references these two files and provides further information about how the simulation should be run.

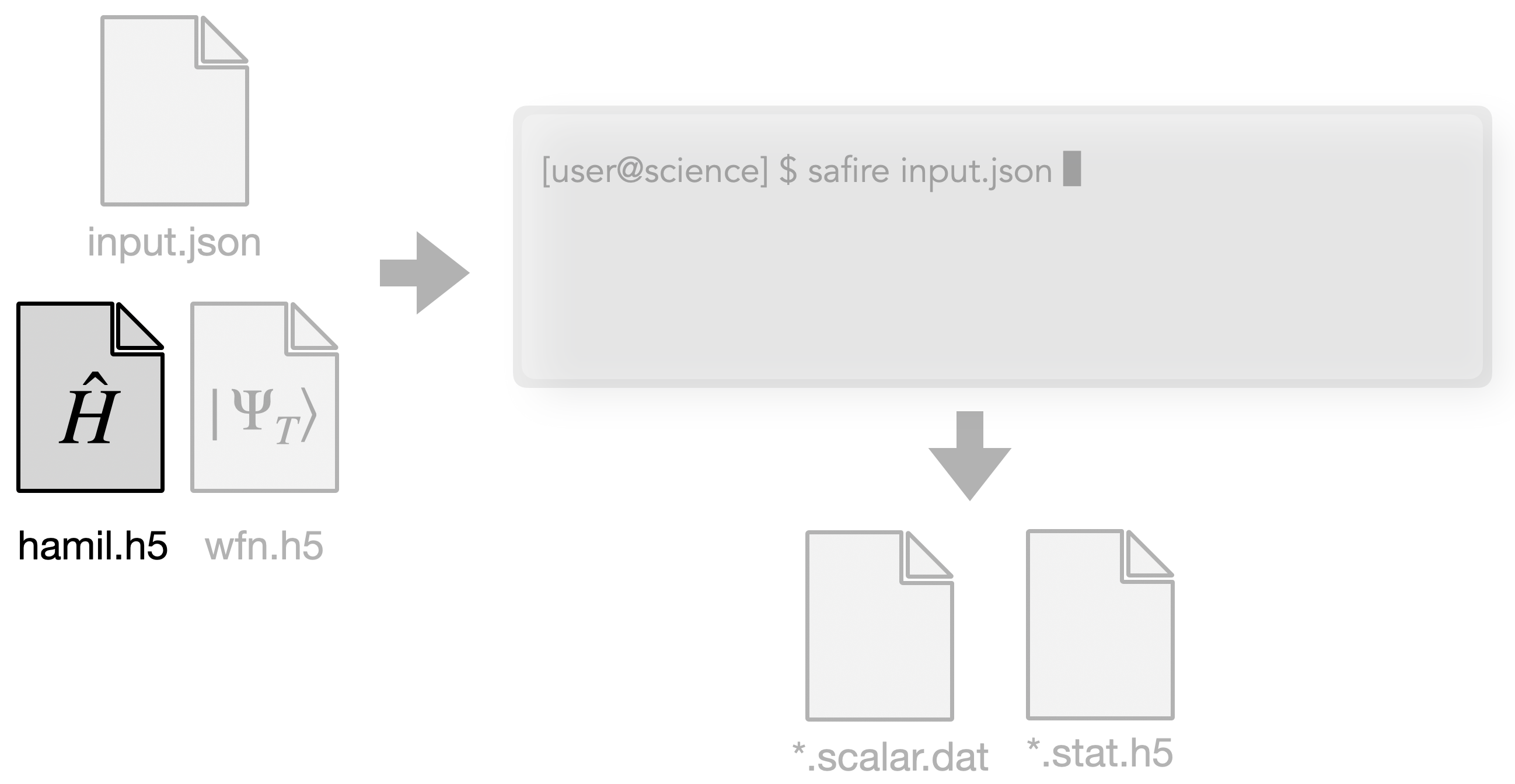

Hamiltonian file : “hamil.h5”
This HDF5 file contains the second-quantized Hamiltonian \(\hat{H}\).
For this tutorial, we have supplied an HDF5 file containing the Born-Oppenheimer Hamiltonian for Si in its primitive cell at equilibrium in “hamil.h5”.
For technical details on the Hamiltonian HDF5 format, see the User Guide.

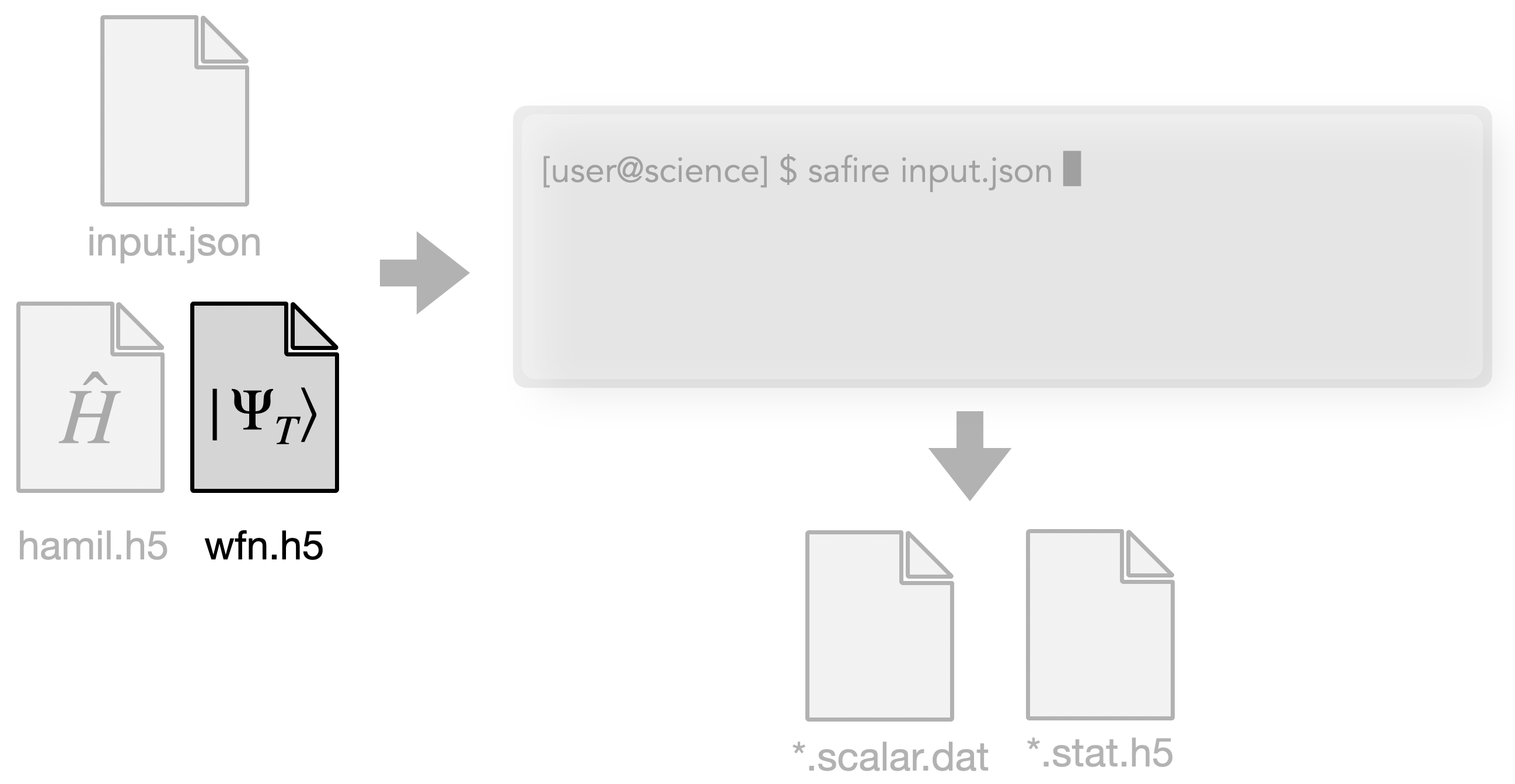

Wavefunction file : “wfn.h5”
This HDF5 file contains the trial wavefunction, \(| \Psi_\mathrm{T} \rangle\).
For this tutorial, we have supplied an HDF5 file containing the RHF ground state as the trial wavefunction.
For technical details on the wavefunction HDF5 format, see the User Guide.

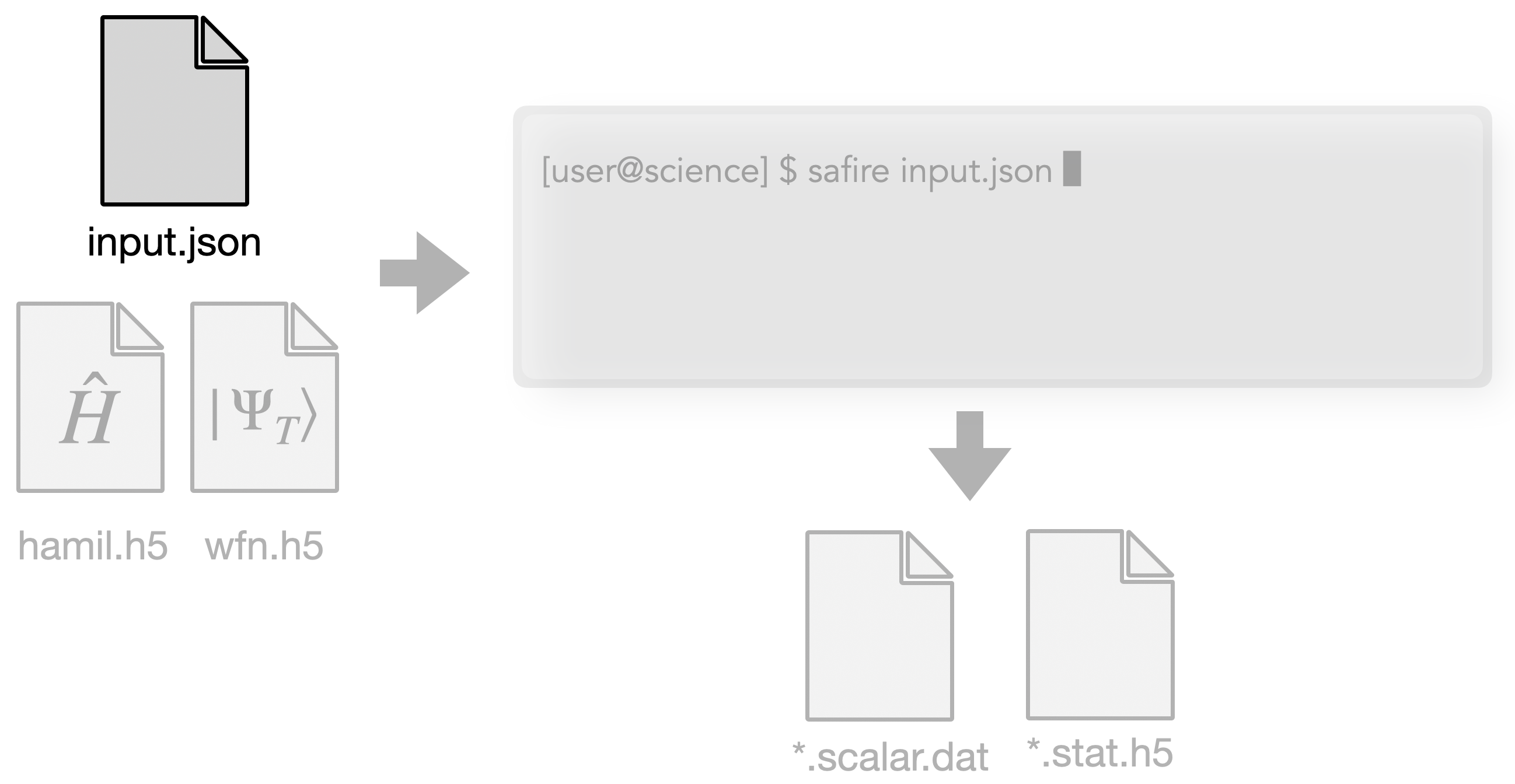

Input file (json format) : “input.json”
The JSON input file sets AFQMC run parameters and references the locations of the Hamiltonian and trial wavefunction files. It is organized into a hierarchy of input blocks which each control specific details of the calculation. Understanding the details of the input file is the goal of the next tutorial, Understanding the input file.
For now, we focus on the wavefunction and hamiltonian blocks.
The wavefunction input block is used to tell SAFIRE where to find the HDF5 file containing the trial wavefunction.
Similarly, the hamiltonian input block is used to tell SAFIRE where to find the HDF5 file containing the Hamiltonian.
The sample json file that we have provided is reproduced here.
{
"afqmc": {
"project": {
"id": "qmc",
"series": 0
},
"execute": {
"walker_set": {
"walker_type": "CLOSED"
},
"wavefunction": {
"filename": "files/wfn.h5"
},
"hamiltonian": {
"filename": "files/hamil.h5"
},
"timestep": 0.01,
"steps": 10000,
"n_walkers_per_mpi_task": 200,
"seed": 42
}
}
}
Notice that the wavefunction and hamiltonian input blocks point to the HDF5 file where we have saved the RHF ground
state and second-quantized Hamiltonian, respectively.
The Outputs
Now that we have seen the inputs of SAFIRE, we will move on to the outputs.
stdout
SAFIRE prints information about the setup of the AFQMC calculation to stdout along with timing information at the end.
We will see the output from SAFIRE throughout the tutorials. Here is a sample header which is printed at the beginning of the output.
███████╗ █████╗ ███████╗██╗██████╗ ███████╗
██╔════╝██╔══██╗██╔════╝██║██╔══██╗██╔════╝
███████╗███████║█████╗ ██║██████╔╝█████╗
╚════██║██╔══██║██╔══╝ ██║██╔══██╗██╔══╝
███████║██║ ██║██║ ██║██║ ██║███████╗
╚══════╝╚═╝ ╚═╝╚═╝ ╚═╝╚═╝ ╚═╝╚══════╝
AF App version: 1.0.0
app git branch: fix_compiler_warnings
app git commit: 83a5e18c30fe824a77185cdb5df6e4dba2918f5c
AFQMCFactory Project settings:
-- ncores (local) : 1
-- n_groups : 1
-- id : qmc
-- series : 0
-- MPI tasks/node : 1
-- MPI nodes : 1
-- MPI tasks : 1
You can see git information from when SAFIRE was compiled. You can also see MPI / parallelization information. We will explore the output further in later tutorials.

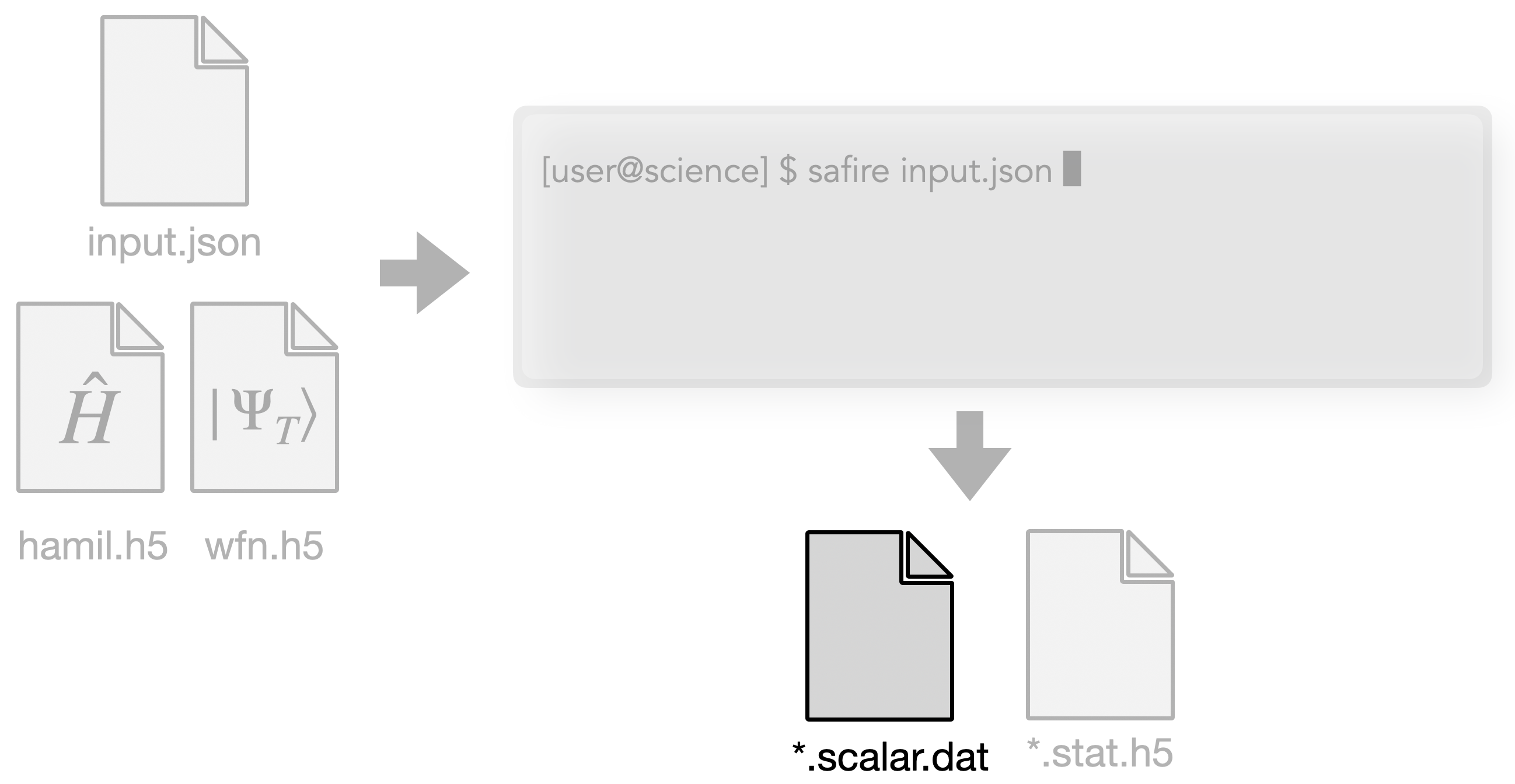

scalar data file : [id].s[series].scalar.dat
A text-based file containing stochastic samples of scalar data, such as the energy.
This file is not meant to be read directly by the user. Instead, afqmctools provides tools to extract information from this file. We will learn how to extract the AFQMC energy from this file later in this tutorial.
The name of this file is derived from the id (string) and series (integer) parameters set in the json input file. Setting these parameters allows running multiple AFQMC calculations in a single directory without output file collisions.

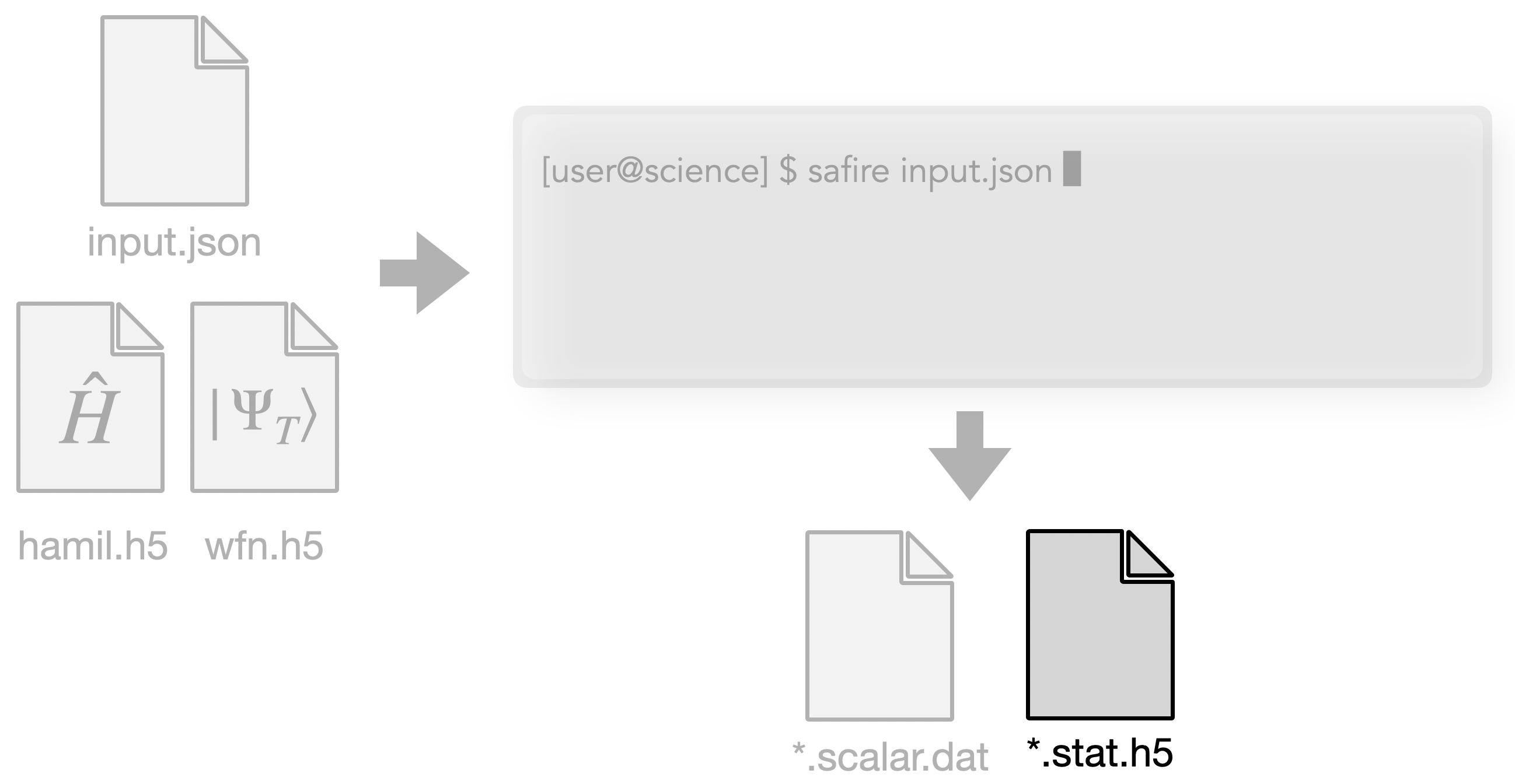

observables output HDF5 file : [id].s[series].stat.h5
An HDF5 file where stochastic samples of non-scalar data, such as the one-body reduced density matrix, are printed by SAFIRE when requested.
Similar to the [id].s[series].scalar.dat file, this file is not meant to be read directly by a user.
Instead, afqmctools provides tools to extract data from this file for you.
You will learn more about this in Computing general observables.
1.2. Running SAFIRE#
Now that we have learned what the inputs and outputs of SAFIRE are, we are ready to learn how to run the SAFIRE executable given the inputs.
1.2.1. Running SAFIRE in serial#
SAFIRE can be invoked from the command line as
$ /path/to/SAFIRE/build/bin/safire input.json
where input.json is the json input file.
The input file can have an arbitrary name, but must end with .json.
When you run the above, an AFQMC calculation will be performed based on the contents of input.json,
using the Hamiltonian and trial wavefunction specified there.
For brevity, we will abbreviate /path/to/SAFIRE/build/bin/safire as safire in this tutorial.
There are many standard ways to make safire accessible from the command line in this way.
You can see the possible command line options for SAFIRE by using the -h/--help switch.
$ safire --help
SAFIRE
Usage:
/path/to/SAFIRE/build/bin/safire [OPTION...] [optional args]
-h, --help print help message
-v, --version print version message
--verbosity arg 0, 1, 2, ...: higher means more (default: 2)
--debug arg 0, 1, 2, ...: higher means more (default: 0)
--filenames arg input filenames
1.2.2. Exercise: Try Running SAFIRE.#
Run SAFIRE with the provided input files. You may use either the code block below, or run SAFIRE in a terminal as described previously. In either case, you can find the json input file here
/path/to/SAFIRE/tutorials/molecules/files/input.json
where /path/to/SAFIRE should be replaced with the path where
you have installed SAFIRE.
The provided json input file assumes that you are running SAFIRE from
/path/to/SAFIRE/tutorials/01_hello_auxiliary_fields/
After running with the default parameters, try changing the verbosity level to see what changes.
!$AFQMC_EXEC files/input.json
1.2.3. Post-exercise#
You should see the following a the top of the output after running SAFIRE.
███████╗ █████╗ ███████╗██╗██████╗ ███████╗
██╔════╝██╔══██╗██╔════╝██║██╔══██╗██╔════╝
███████╗███████║█████╗ ██║██████╔╝█████╗
╚════██║██╔══██║██╔══╝ ██║██╔══██╗██╔══╝
███████║██║ ██║██║ ██║██║ ██║███████╗
╚══════╝╚═╝ ╚═╝╚═╝ ╚═╝╚═╝ ╚═╝╚══════╝
AF App version: 1.0.0
This build has the following enabled:
- MKL: 1
- CUDA: 0
- HIP: 0
app git branch: develop
app git commit: ee49a5e69208e2afc03aab970572b9e79759e543
app git commit date: Fri Nov 7 13:27:02 2025 -0500
AFQMCFactory Project settings:
-- ncores (local) : 1
-- n_groups : 1
-- id : qmc
-- series : 0
-- MPI tasks/node : 1
-- MPI nodes : 1
-- MPI tasks : 1
Congratulations, you have now run an AFQMC calculation using SAFIRE!
In the directory that you ran this notebook from, you should see a file called
qmc.s000.scalar.dat.
We will return to how to use the tools in afqmctools to extract the AFQMC energy later in this tutorial.
1.3. Running SAFIRE in parallel#
1.3.1. Using MPI#
SAFIRE can be run with MPI in the usual ways. For example, using mpirun, we could run SAFIRE with 64 MPI tasks as
$ mpirun -np 64 safire --filenames input.json
It is important to note that the number of walkers is specified in the input file
as n_walkers_per_mpi_task.
So, the total number of walkers using the sample input file above and 64 MPI tasks
would be
For the sample inputs, this is significantly more walkers than necessary,
and for calculations that run on a CPU only build of SAFIRE,
n_walkers_per_mpi_task will typically be on the order of 10-50.
1.3.2. GPU Builds#
To run on GPUs, you must compile SAFIRE for the GPU. See the documentation for instructions on compiling for GPU.
On GPU builds of SAFIRE, the calculation is more efficient when the GPU is saturated. The specific number of walkers needed to achieve this depends on how large the system is and how much memory is available on the GPUs. For small systems, this could mean using on the order of 1000 walkers or more per task. For very large systems, this may mean on the order of 10 walkers per MPI task.
1.4. Basic post-processing#
Now that we’ve learned how to invoke the SAFIRE executable from the command line in serial, using MPI, and using GPU(s), we are ready to learn how to extract the AFQMC energy from the outputs using afqmctools.
We previously ran SAFIRE on the Hamiltonian of the STO-3G basis hydrogen dimer
with bondlength \(\delta_{H-H} = 1.4 a_0\).
This generated a scalar data file, qmc.s000.scalar.dat, which contains
the scalar data that was accumulated during the AFQMC calculation, including the AFQMC energy.
afqmctools provides the scalar_stats CLI tool to extract data from the scalar data file.
If you followed the official installation instructions for afqmctools, you
should be able to run $ scalar_stats from within whichever Python environment you
installed afqmctools in.
By default, scalar_stats will compute the average AFQMC energy and the stochastic uncertainty of the
energy based on the samples in the *.scalar.dat file.
Below is an example of using scalar_stats where we have set the “x axis” to (AFQMC projection) time,
and the equilibration time to 2.0 inverse energy units.
$ scalar_stats qmc.s000.scalar.dat -s time -e 2.0
====== [analyze_scalar_data Settings] ======
[+] fname = qmc.s000.scalar.dat
[+] mark_header = #
[+] series_column = time
[+] nequil = 2.0
[+] estimate_equil = False
[+] column = LocalEnergy
[+] reblock = 1
[+] ndiscard = None
[+] list = False
[+] trace = False
[+] append = None
[+] dump = False
[+] dump_fname = trace.dat
[+] verbose = True
[+] autocorr = None
[+] savefig = None
[+] dump_avail_columns = False
AFQMC Energy -1.135742 +/- 0.000286 7.87 2.0/100.0

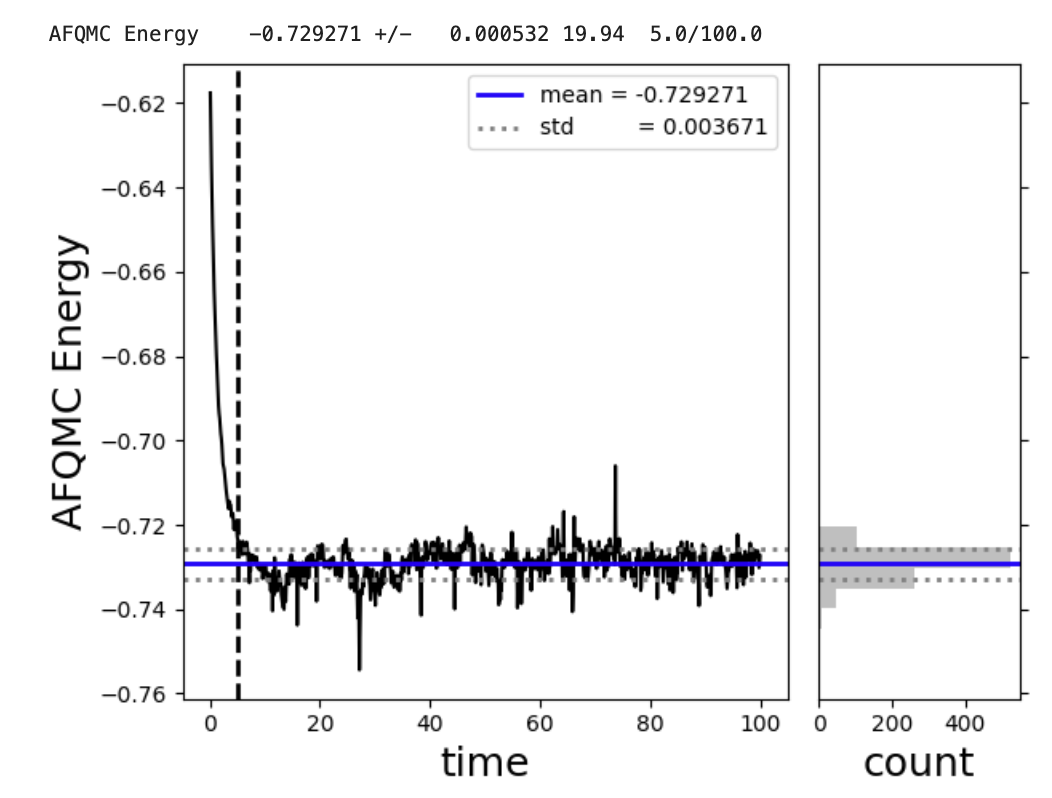

You can also view the AFQMC energy as a function of the projection time (sometimes referred to as the “equilibration curve”) by
adding the -t option to plot the data trace.
Running
$ scalar_stats qmc.s000.scalar.dat -s time -e 2.0 -t
will generate the plot,
One should check the equilibration curve to ensure that the equilibration
time, -s time -e 2.0, is large enough to discard the samples where AFQMC is not sampling from the target many-body wavefunction yet.
On the other hand, the equilibration length should not be so large that it discards equilibrated samples.
1.4.1. Exercise: Try Running scalar_stats#
Use the code block below to run scalar_stats on the data that we generated
in the last exercise.
You should get an AFQMC energy of -1.135742 +/- 0.000286
if you did not change any settings.
Now, try to changing the equilibration length such that only un-equilibrated samples are discarded.
!scalar_stats qmc.s000.scalar.dat -s time -e 2.0 -t
1.5. Post Exercise#
If you play around with the equilibration length, you will see that, for very small equilibration length, the predicted energy will be incorrect. This is due to the inclusion of un-equilibrated samples in the average. On the other hand, the average energy should be stable if you use too large of a value for the equilibration length.
1.6. Some Tutorial Helper Python Functions#
Now that we have learned how to extract the AFQMC energy from the outputs of SAFIRE using afqmctools, we are ready to how to use the tutorial helper functions to invoke SAFIRE and extract the AFQMC energy from within an interactive Python notebook.
For convenience, we provide the run_afqmc() helper function in the tutorial_utils Python package.
run_afqmc(input_file=input_file, np=np) runs the SAFIRE executable as
$ mpirun -np [np] safire --filenames [input_file]
Here is a typical example of using run_afqmc().
from tutorial_utils import run_afqmc
scratch_dir = Path("data")
run_afqmc(
run_dir=scratch_dir, # directory to run SAFIRE in - output files will be there
input_file="/path/to/inputfile/input.json",
np=12, # number of MPI tasks
output_file=None # optionally direct output to file; if None,
) # then output will be captured in the jupyter notebook.
Where the np parameter is forwarded directly to -np [np] and
input_file is passed to safire --filenames [input_file].
1.6.1. Exercise: Run the full sample calculation using the convenience wrappers.#
Use the code block below to run the entire calculation again.
Just as before, at the end, you should get an AFQMC energy of -1.135742 +/- 0.000286
if you did not change any settings.
from pathlib import Path
import shutil
import numpy as np
from afqmctools.hamiltonian.mol import write_hamiltonian_generic
from afqmctools.wavefunction.mol import write_wfn
from afqmctools.inputs.from_hdf import write_json
from tutorial_utils import run_afqmc
from stats.scalar_dat import analyze_scalar_data
scratch_dir = Path("data")
scratch_dir.mkdir(parents=True, exist_ok=True)
# copy the provided files
files_dir = scratch_dir / "files"
files_dir.mkdir(exist_ok=True)
shutil.copy("files/input.json", files_dir)
shutil.copy("files/wfn.h5", files_dir)
shutil.copy("files/hamil.h5", files_dir)
run_afqmc(
run_dir=scratch_dir,
input_file="files/input.json", # the location of the sample input file.
np=16, # to run in serial just as before!
output_file=None
)
# post process!
_ = analyze_scalar_data(dict(
fname = scratch_dir/"qmc.s000.scalar.dat",
series_column = "time",
nequil = 10,
trace = True
))
1.7. Summary#
In this tutorial we have learned,
what are the inputs and outputs of SAFIRE.
how to invoke the SAFIRE executable from the command line in serial, using MPI, and using GPU(s)
how to extract the AFQMC energy from the outputs of SAFIRE using afqmctools
how to use the tutorial helper functions to perform 2 and 3 from within an interactive Python notebook
Next, we will take a more detailed look at the input file in Understanding the input file.
